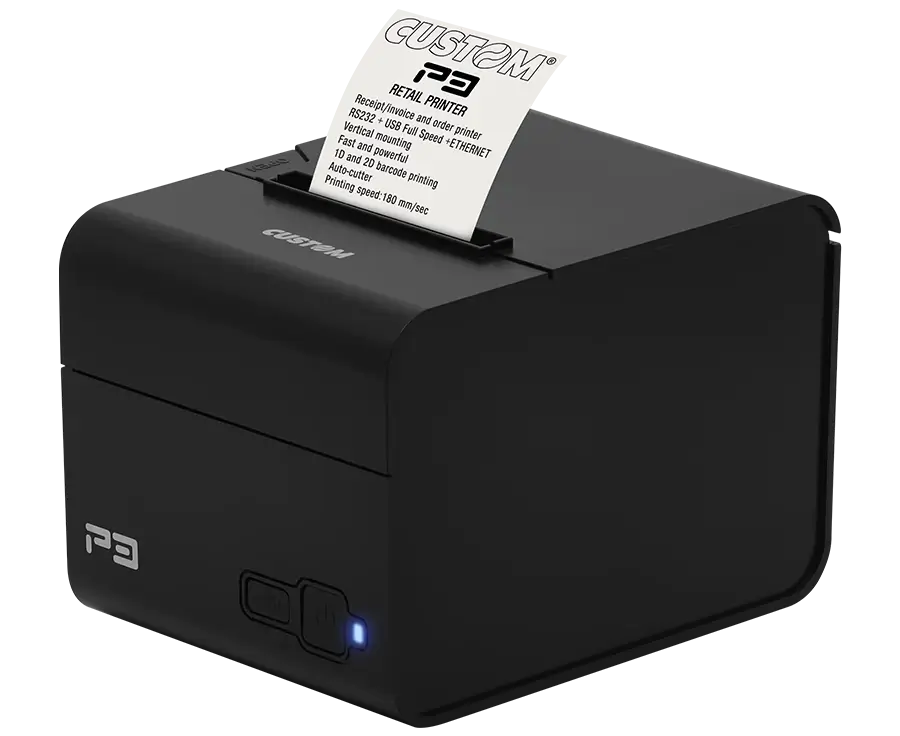

CUSTOM P3

CUSTOM P3

Printing Method: Thermal printing, fixed headNumber of Dots: 8 dots / mmResolution: 203dpiPrinting (mm/sec): 180mm/sPrinting Direction: Normal, 90°, 180°, 270°Printing Format: Height and width from 1 to 8, bold, reverse, underlined, italicCharacter Set: Standard font, extended chinese 18030, Koreano PC949Supported Barcodes: UPC-A, UPC-E, EAN8, EAN13, CODE39, ITF,CODABAR, CODE93, CODE128, CODE32,...
10,000 ALL
10,000 ALL
Bli me WhatsApp

Për çdo blerje, ju dhurojmë aksesorë falas dhe sigurojmë garanci për qetësinë tuaj!

Detajet e Produktit
Detajet e Produktit
x

Printing Method: Thermal printing, fixed head
Number of Dots: 8 dots / mm
Resolution: 203dpi
Printing (mm/sec): 180mm/s
Printing Direction: Normal, 90°, 180°, 270°
Printing Format: Height and width from 1 to 8, bold, reverse, underlined, italic
Character Set: Standard font, extended chinese 18030, Koreano PC949
Supported Barcodes: UPC-A, UPC-E, EAN8, EAN13, CODE39, ITF,CODABAR, CODE93, CODE128, CODE32, 2D barcode PDF417, QRCODE, DATA MATRIX
Paper Width: 80mm
Paper Weight: from 60 gr/m² to 90 gr/m²
Paper Thickness: from 63 μm to 100 μm
Roll Dimension: max Ø 80mm
Sensors: Paper presence
Head temperature: Cover open
Emulation: CUSTOM/POS
Interfaces: RS232 / USB Full Speed / ETHERNET
Data Buffer: 8 kB
Flash Memory: 1 MB internal + 4 MB external
RAM Memory: 256 kB internal
Drivers: Windows XP, VISTA (32/64 bit), Windows 7 (32/64 bit), Windows 8 (32/64 bit), Windows 8.1 (32/64 bit), Windows 10 (32/64 bit), Self-installing driver for Virtual COM (32/64 bit), Linux
Power Supply: 24 Vdc ± 10%
Medium Consumption: 1.5A (12,5% dots turned on)
Head Life: 150 Km, 100 M pulse (12.5% duty cycle)
MCBF: 1 million cuts, partial cut
Operating Temperature: 0°C + 50°C
Dimensions: 142 mm (W) × 190 mm (L) × 135,5 mm (H)
Weight: 1,1 Kg
